More plotting examples¶
[3]:
import climetlab as cml
Get some GRIB data
[4]:
ds = cml.load_dataset("sample-grib-data")

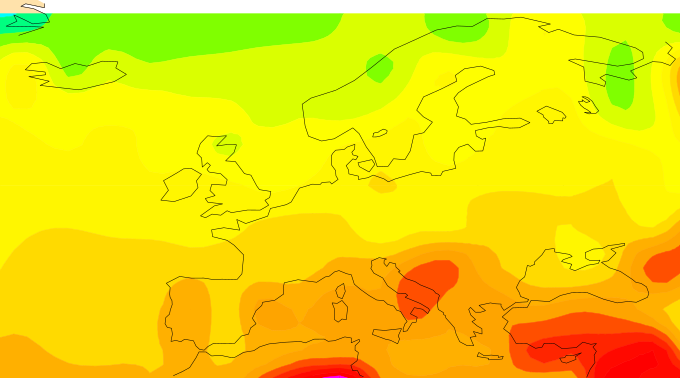

Plot the first field
[5]:
cml.plot_map(ds[0])
Plot the second field
[6]:
cml.plot_map(ds[1])

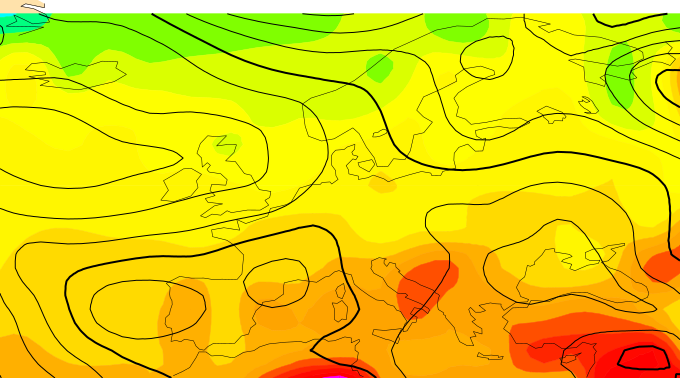

Plot both fields on the same map
[7]:
cml.plot_map((ds[0], ds[1]))
Alternative method:
[8]:
p = cml.new_plot()
p.plot_map(ds[0])
p.plot_map(ds[1])
p.show()

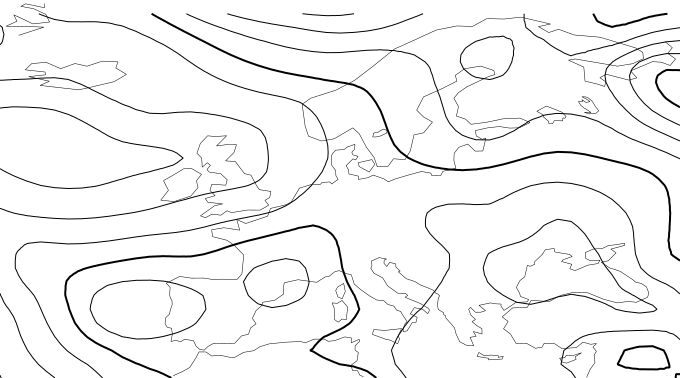

Switch off background map
[9]:
cml.plot_map(ds[1], background=False)
Switch off both foreground and background
[10]:
cml.plot_map(
ds[1],
foreground=False,
)

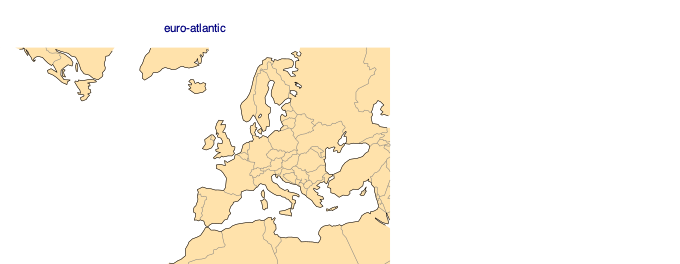

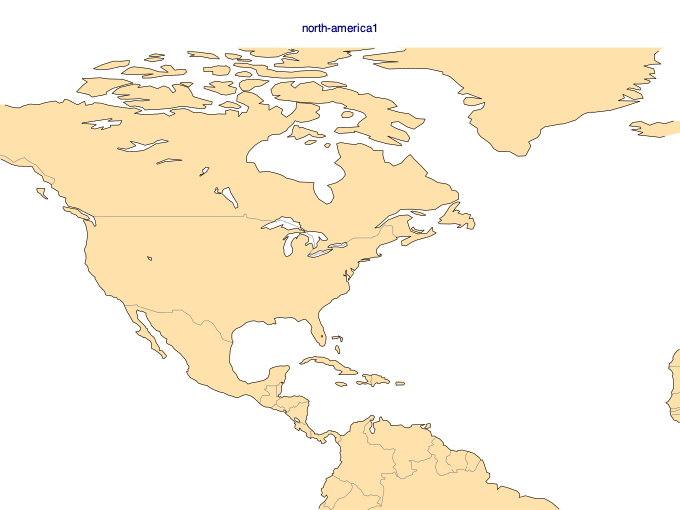

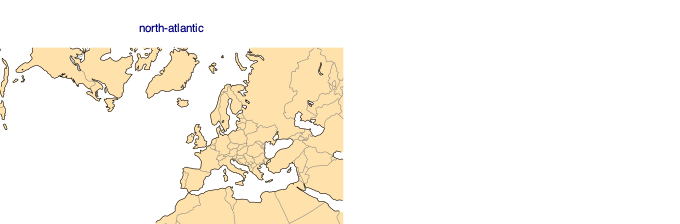

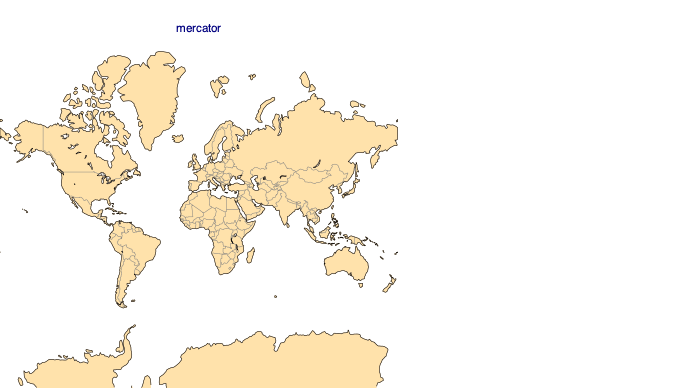

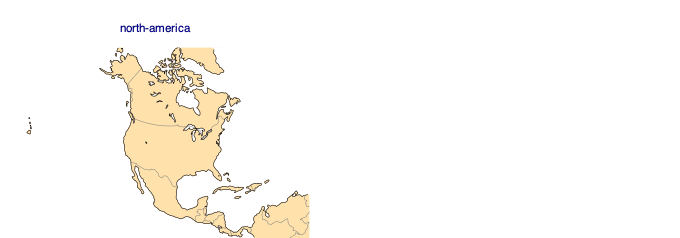

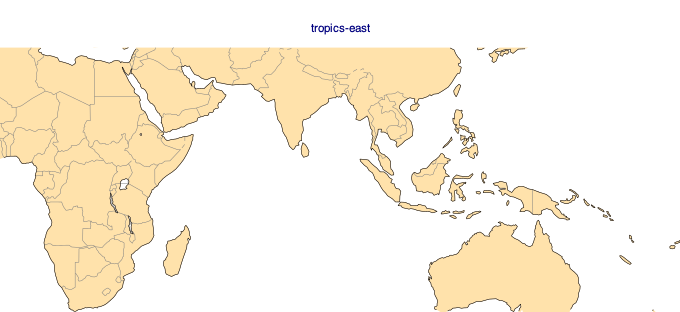

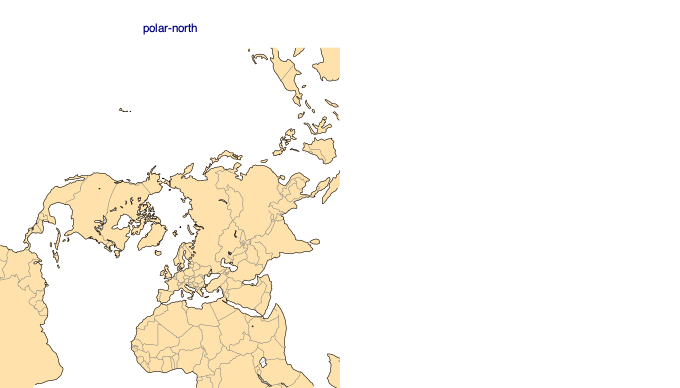

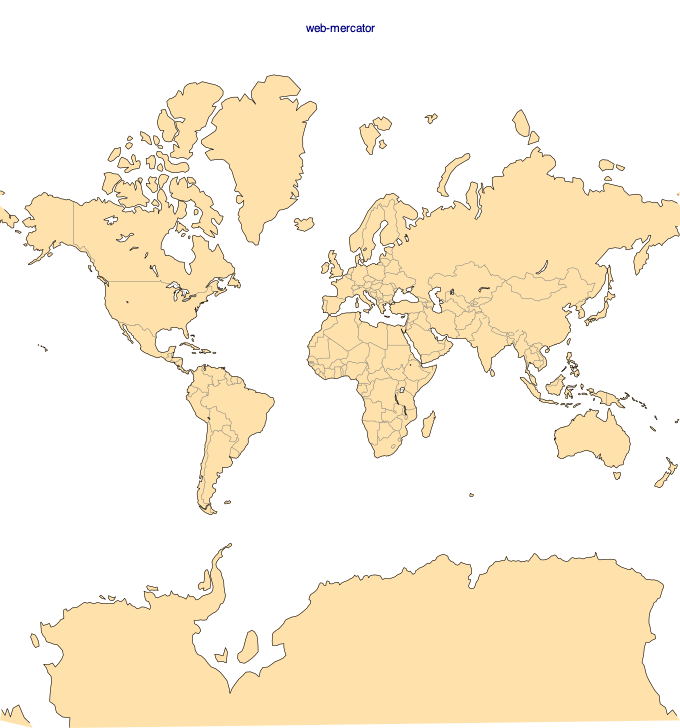

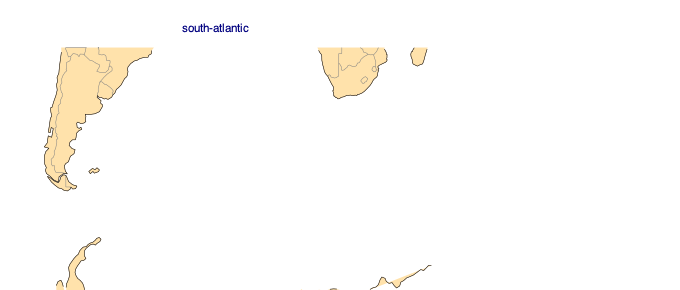

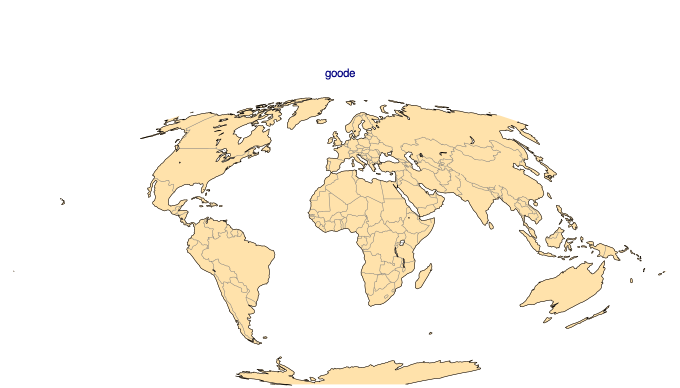

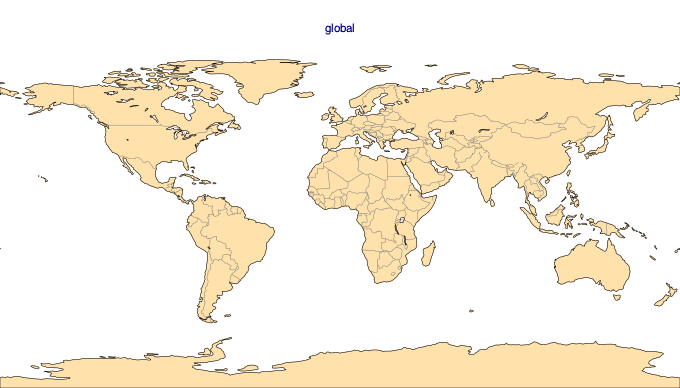

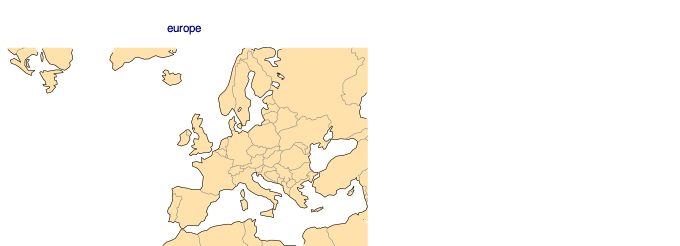

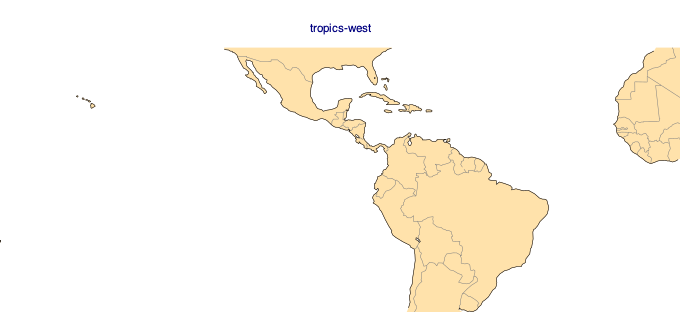

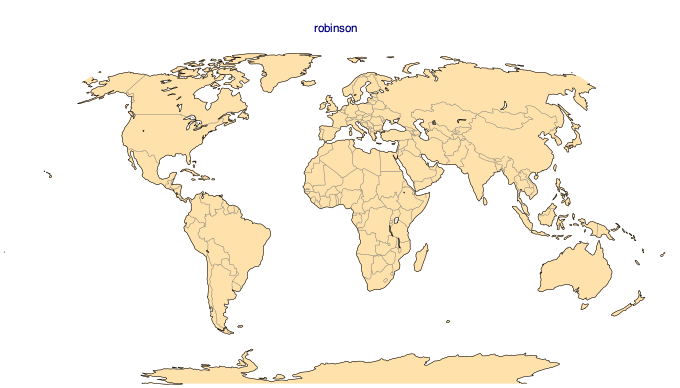

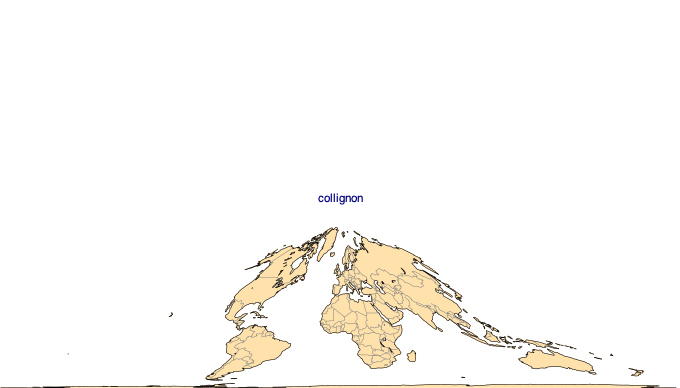

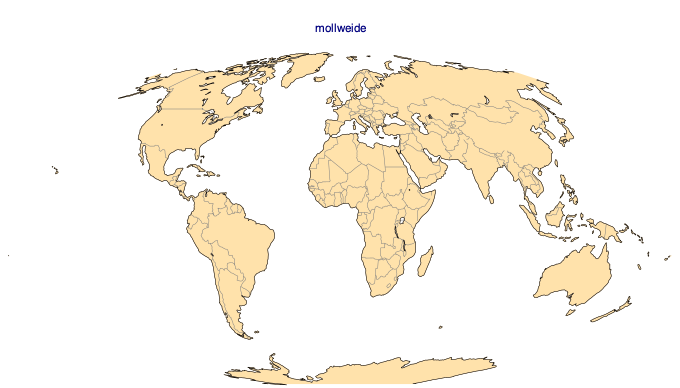

Projections¶
[11]:
from climetlab.plotting import projections
[12]:
for projection in projections():
cml.plot_map(projection=projection, title=projection)
Low-level graphical attributes¶
[13]:
cml.plotting_options(width=500)
[14]:
atlantic = cml.load_dataset("hurricane-database", bassin="atlantic")
[15]:
df = atlantic.to_pandas()
[16]:
david = df[(df.name == "david")]
[17]:
cml.plot_map(
david, style=dict(symbol_colour="blue", symbol_type="marker", symbol_marker_index=3)
)
[18]:

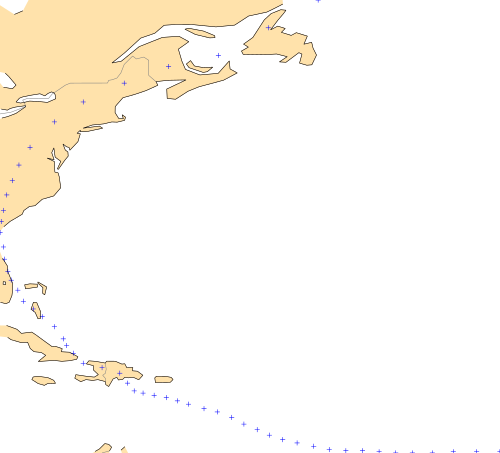

cml.plot_map(david)
[19]:
cml.plot_map(david, style={"+symbol_colour": "blue"})
[20]:

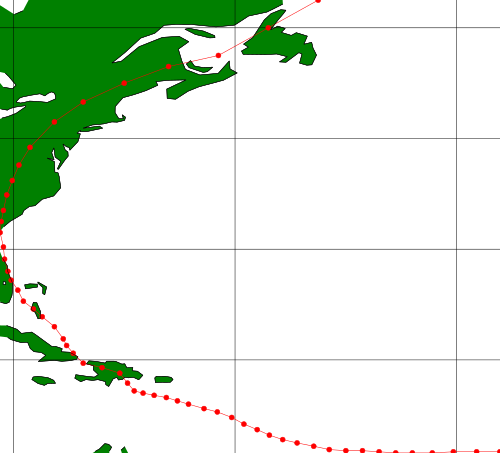

cml.plot_map(
david,
background={
"map_coastline_land_shade": True,
"map_coastline_land_shade_colour": "green",
},
)
[21]:

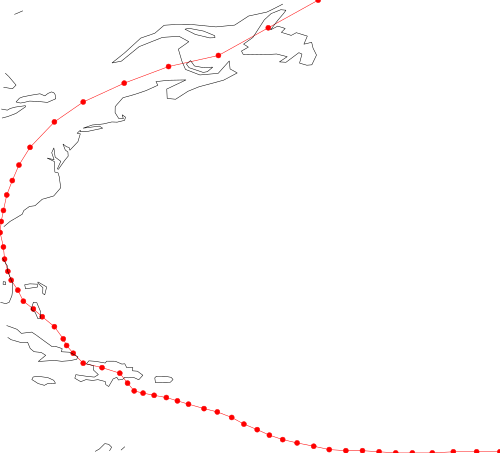

cml.plot_map(david, background=False)
