More plotting examples¶
[3]:
import climetlab as cml
Get some GRIB data
[4]:
ds = cml.load_dataset("sample-grib-data")

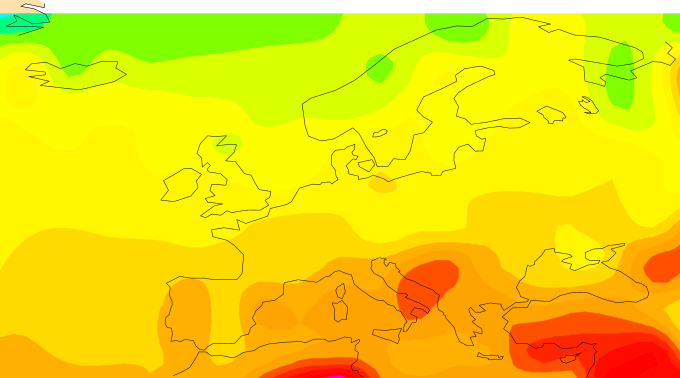

Plot the first field
[5]:
cml.plot_map(ds[0])
Plot the second field
[6]:
cml.plot_map(ds[1])

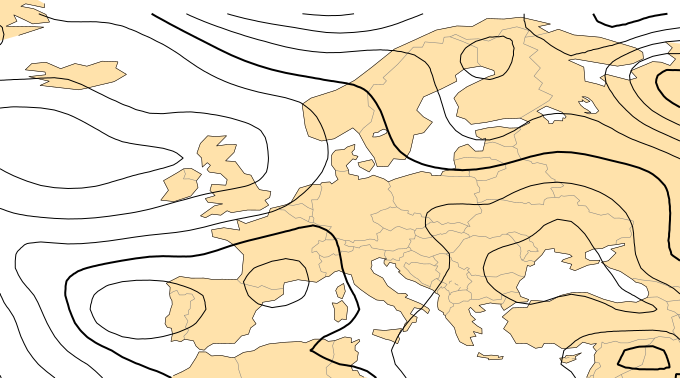

Plot both fields on the same map
[7]:
cml.plot_map((ds[0], ds[1]))
Alternative method:
[8]:
p = cml.new_plot()
p.plot_map(ds[0])
p.plot_map(ds[1])
p.show()
Switch off background map
[9]:
cml.plot_map(ds[1], background=False)

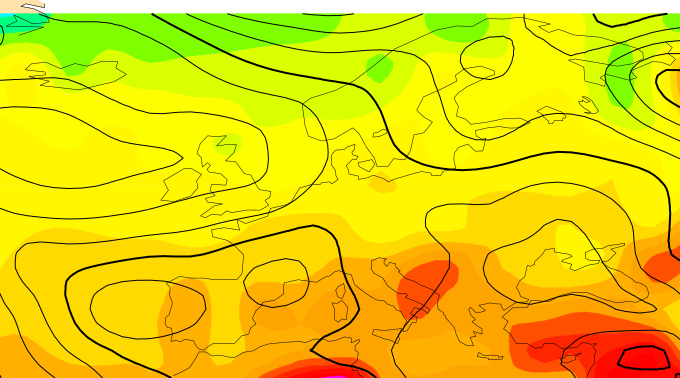

Switch off both foreground and background
[10]:
cml.plot_map(ds[1], foreground=False,)

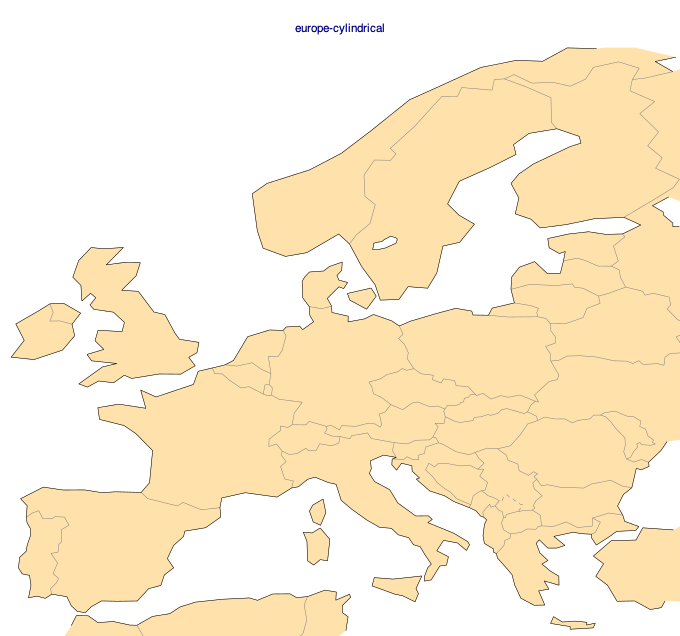

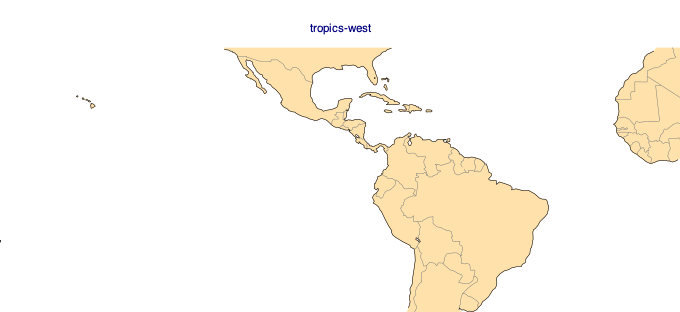

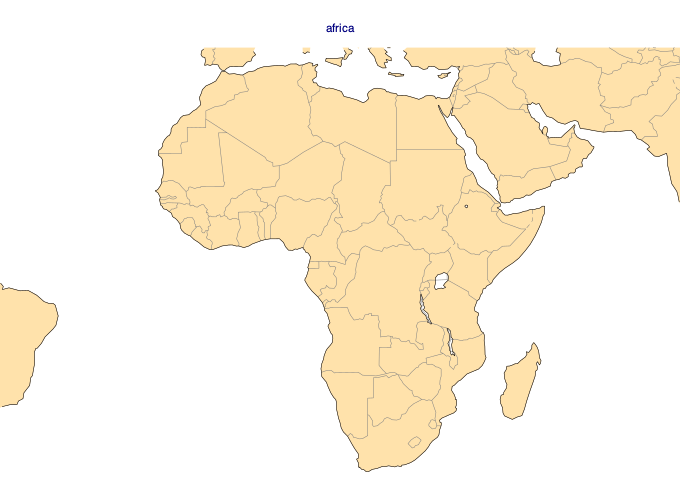

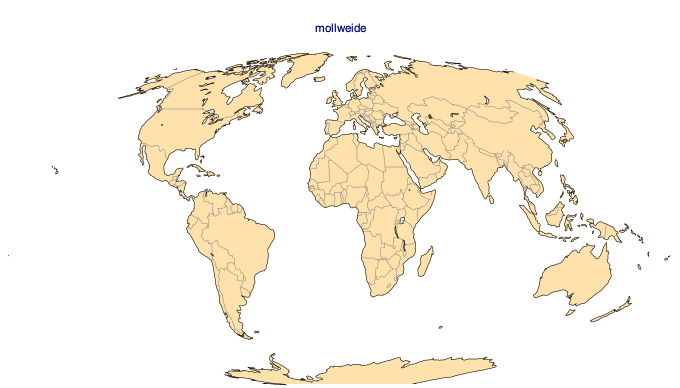

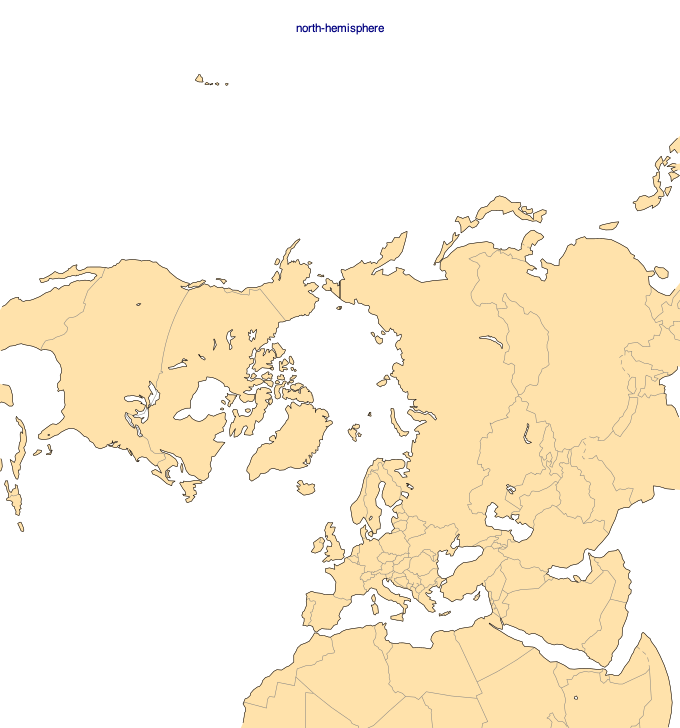

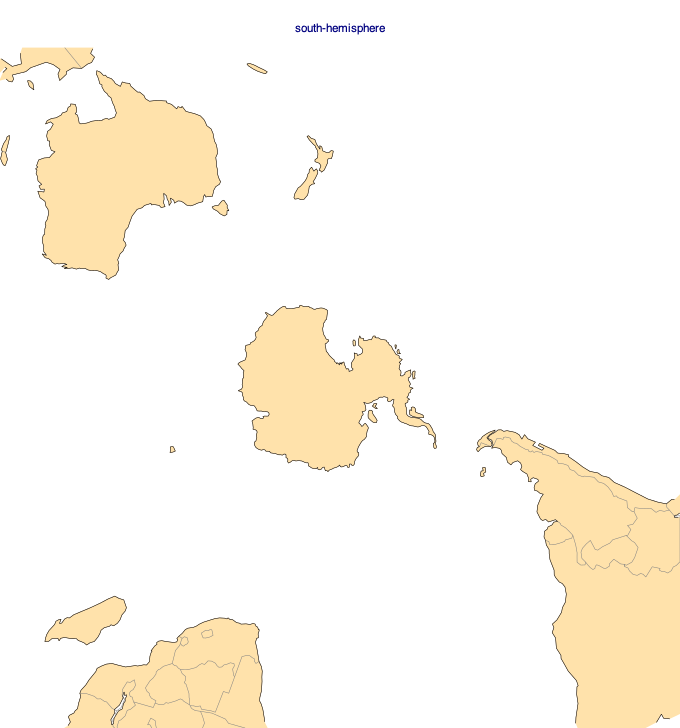

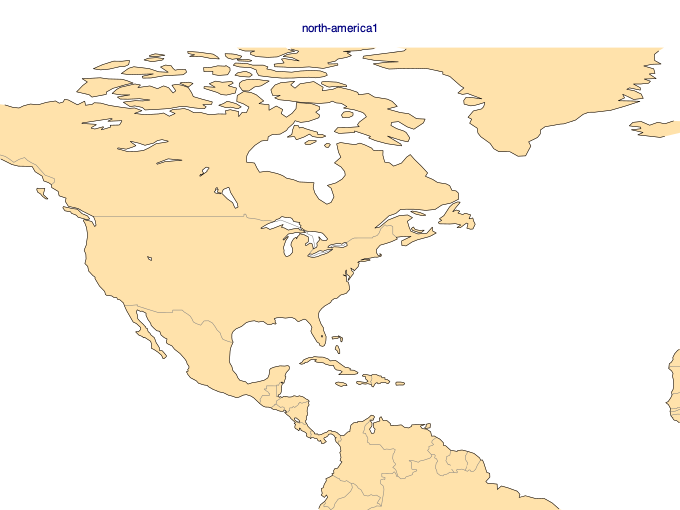

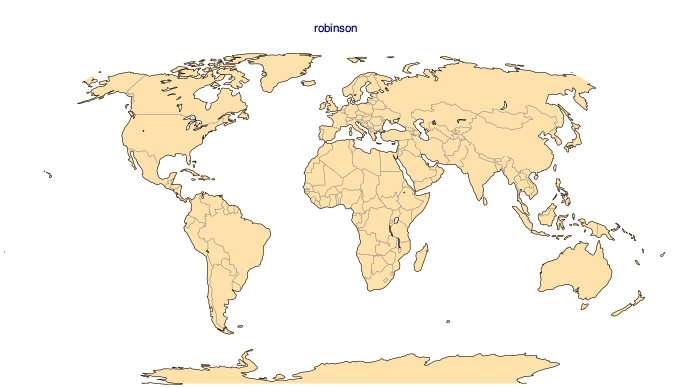

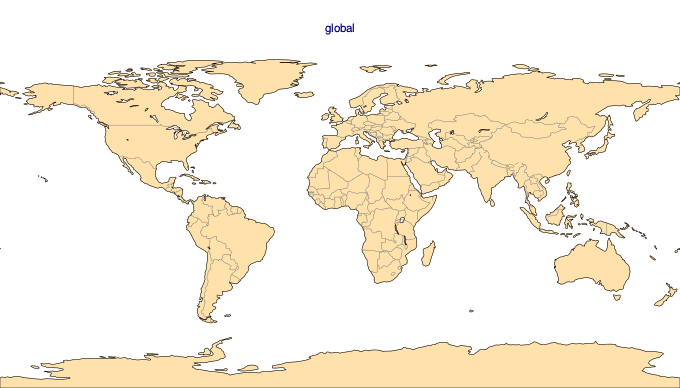

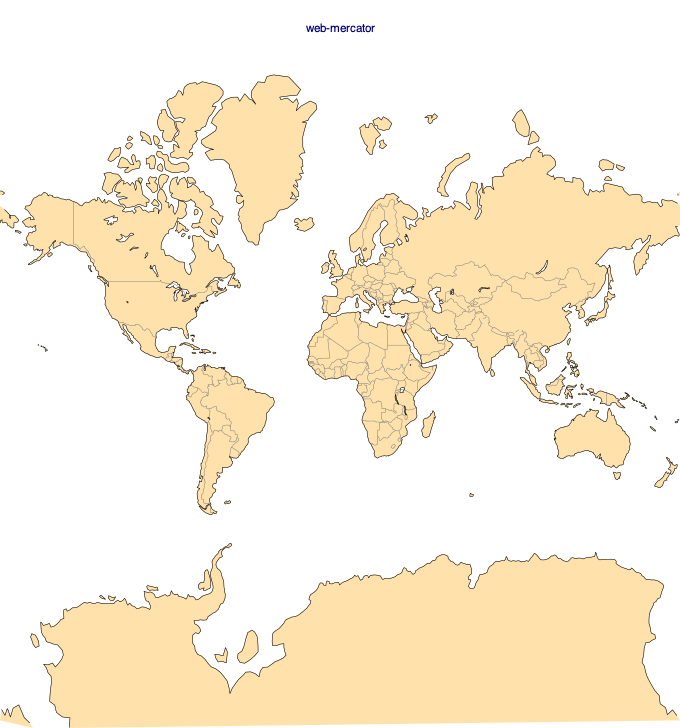

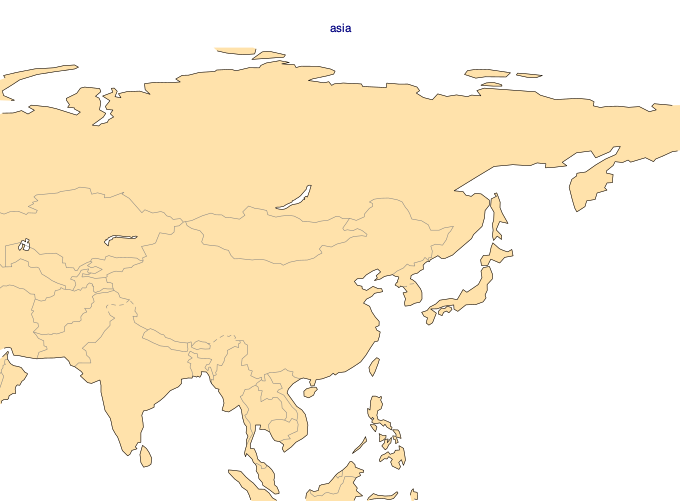

Projections¶
[11]:
from climetlab.plotting import projections
[12]:

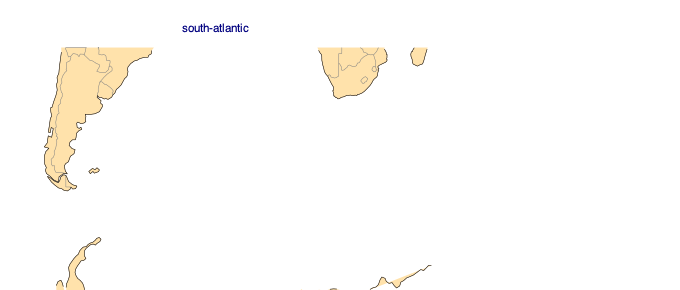

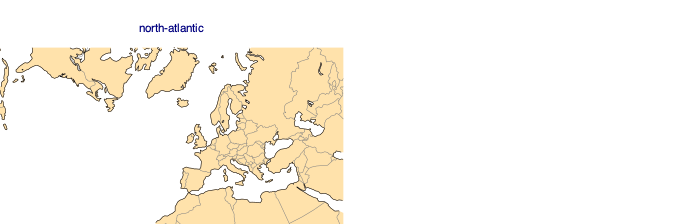

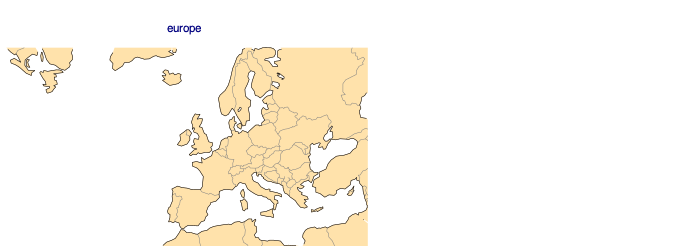

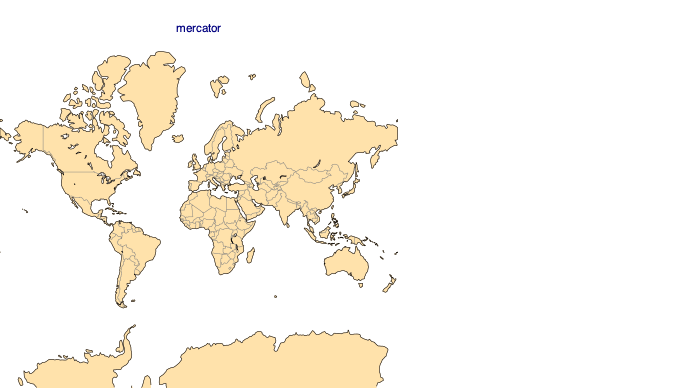

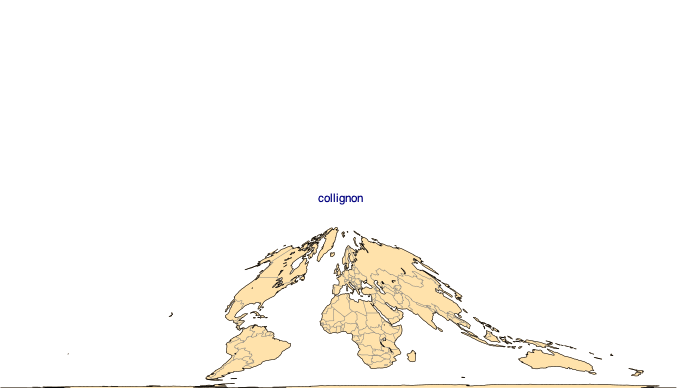

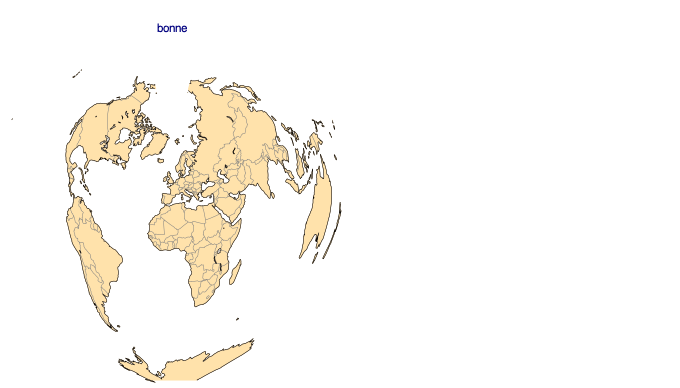

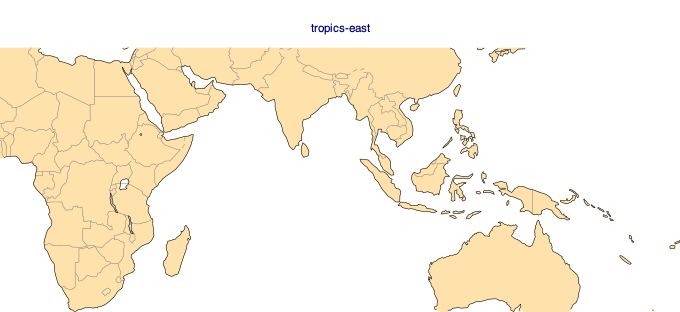

for projection in projections():
cml.plot_map(projection=projection, title=projection)
Low-level graphical attributes¶
[13]:
cml.plotting_options(width=500)
[14]:
atlantic = cml.load_dataset("hurricane-database", bassin="atlantic")
[15]:
df = atlantic.to_pandas()
[16]:
david = df[(df.name=='david')]

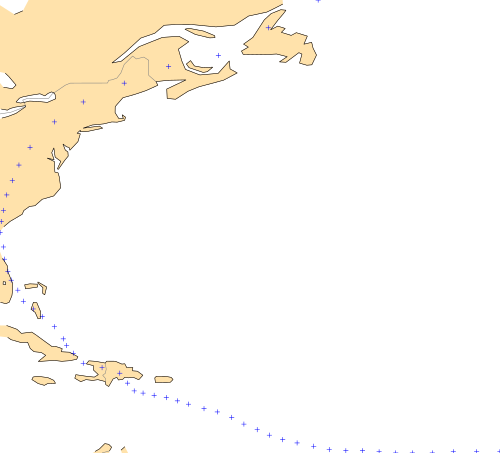

[17]:
cml.plot_map(david, style=dict(symbol_colour="blue",
symbol_type="marker",
symbol_marker_index= 3))

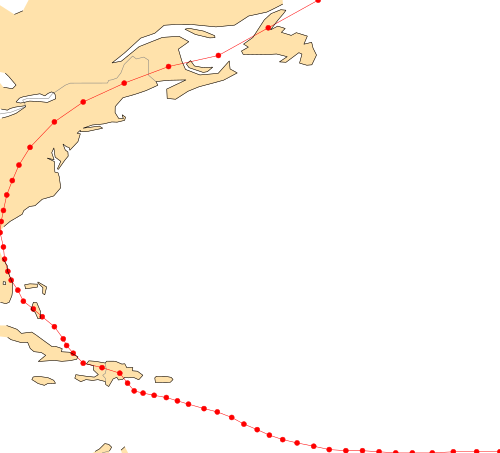

[18]:
cml.plot_map(david)

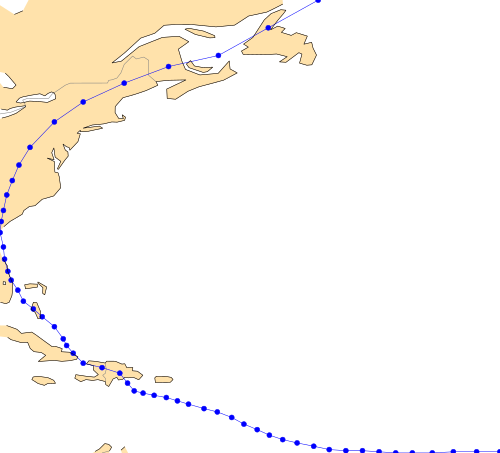

[19]:
cml.plot_map(david,style={'+symbol_colour': 'blue'})
[20]:
cml.plot_map(david, background={'map_coastline_land_shade': True,
'map_coastline_land_shade_colour': 'green'})

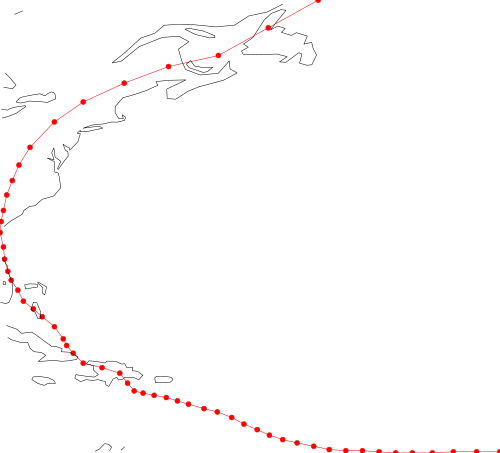

[21]:
cml.plot_map(david, background=False)
